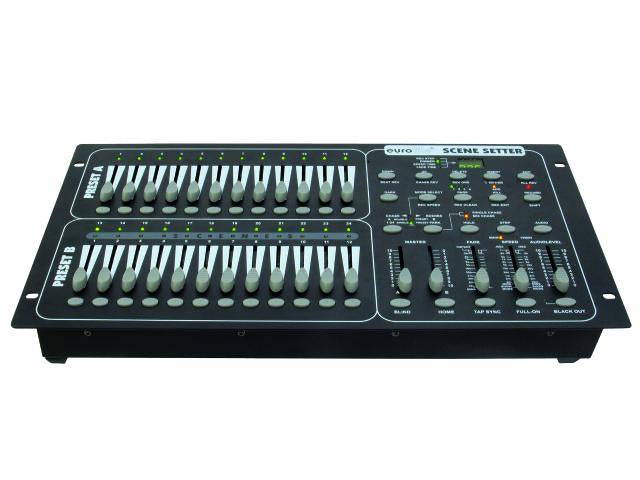

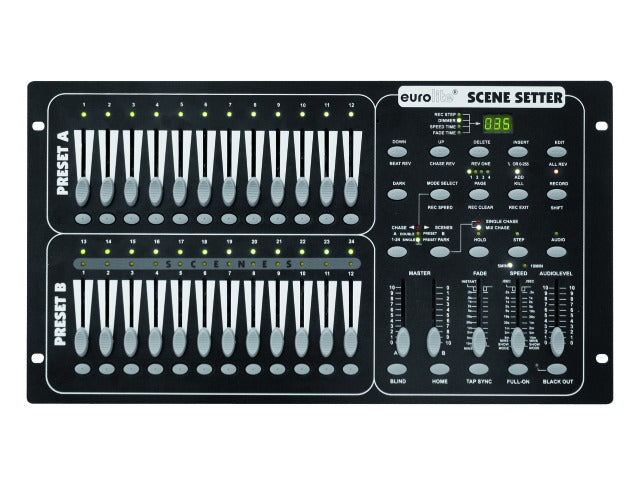

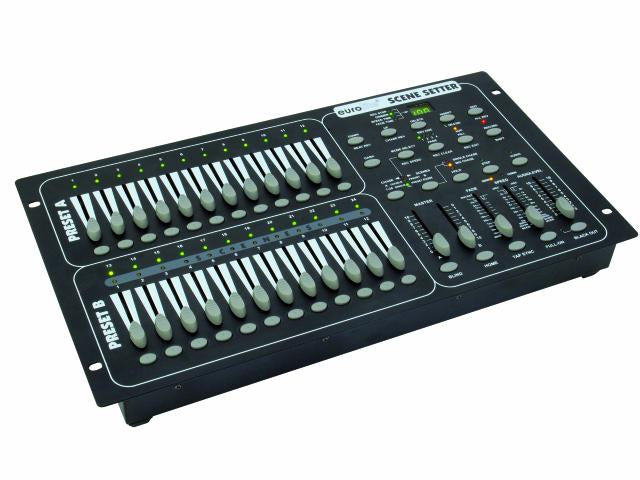

Eurolite DMX Scene Setter

• 24 kontrollkanaler
• 48 programmer som kan huskes på 4 sider
• 12 scener kan hentes opp direkte via faderne
• Blackout funksjon
• Lydkontroll via innebygd mikrofon eller via linjeinngang
• Kontrolleren leveres uten forhåndsprogrammerte Chasers
• Rackmontering med 6 enheter

Product Specifications

Power Supply:

• Voltage: 230 V AC, 50 Hz
• Output: 12 V DC, 500 mA
• Pin Configuration: Inside + / outside -

Power Consumption:

• 4.00 W

IP Classification:

• IP20

Protection Class:

• Protection class III

Power Connection:

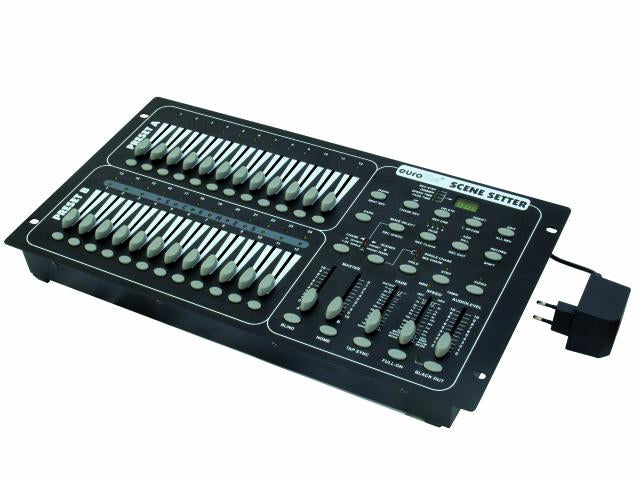

• Mains input via Coaxial power connector (M) mounting version, power supply cord with AC adapter (provided)

Programs:

• Programmable 48 scenes/chases distributed over 4 pages

DMX Channels:

• Output 24

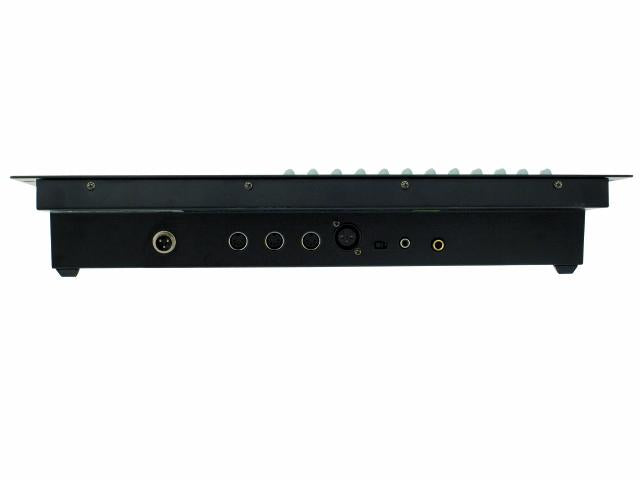

DMX Output:

• 1 x 3-pin XLR (F) mounting version

Control:

• DMX
• Sound to light via Microphone
• Sound to light via RCA (F) mounting version

Housing Color:

• Black

Control Elements:

• DMX polarity selector
• Power switch

Mounting Depth:

• 80 mm

Housing Design:

• (19") 48.3 cm rack installation 6 U
• Desktop console housing

Dimensions:

• Width: 48.3 cm
• Depth: 26.4 cm
• Height: 8.9 cm

Weight:

• 4.30 kg

Noise Classification:

• Class 0 (no noise at all)

Downloads:

• 70064540-Manual-122685-4.000-de_en.pdf (2 MB)
